Architectural Panel Forming

We've Done Roofing Installation & Repair for Decades

Architectural Panel Forming (APF) for Dallas, Austin, Houston, San Antonio, and Denver

Architectural Panel Forming Co. (APF) specializes in the manufacturing of metal wall shingles, flush panels and standing seam roof panels for standing seam metal roofing. Wall shingles and flush panels are built in our facilities in Austin, according to your architectural specifications, and sent to your job ready for installation. Installation can be completed by either by your personnel or our personnel.

Standing seam metal roof panels can be fabricated on site (no power source required) or prefabricated at our facilities in Austin, Texas and shipped ready to install on your standing seam metal roof. APF does not do installation of roofing panels, but can fabricate on or off site for your convenience. On site fabrication is advantageous in eliminating dimensional errors, shipping damage, short shipments and scrap losses. It also eliminates the cost of packaging and freight and makes it possible to adjust the width of panels to meet non- standard conditions.

REQUEST PANEL INSTALLATION

Metal Wall Shingle Manufacturing

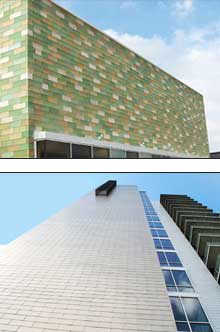

Long Center wall claddingAPF can customize the dimensions of our wall panels to fit the design and needs of your building. Our custom wall panels can be fabricated using the following:

Copper (16oz. To 20oz.) | Aluminum (.032” only)
Steel (26ga. To 22ga.) | Zinc (.080” only)

The dimensions of our panels can range from 1’ to 20’ in length and up to 16” in width. Our panels have interlocking end laps and are clip-less. They are mechanically fastened and the fastening pattern can maintain a 16” grid to achieve 30 psf. Our panels can be trim-less at the inside and outside corners.

APF’s shingles have been installed on prestigious buildings across the country :

Long Center for the Performing Arts – Aluminum wall shingles
Austin City Lofts – Copper wall shingles
AMLI on 2nd – Aluminum wall shingles
Includes a 20 year Finish Warranty and a 2 year Workmanship Warranty.
– Custom colors are available
– Engineering is available
(Call 866-671-7791 for info.)


Metal Flush Panel Fabrication

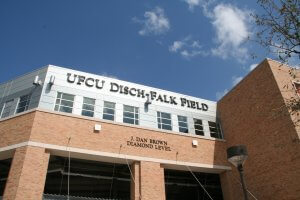

UFCU ROOF

APF has manufactured flush panels on several jobs across the country as well.
Our panels can be fabricated using the following:

Copper (16oz. To 24oz.) | Aluminum (.032” to .050”)
Steel (26ga. To 22ga.) | Zinc (.080” only)

Our panels are clip-less, mechanically attached and have a fastening pattern of no greater than a 16” grid. They can be insulated for more “R” value if needed. They are available in to 20’ in length and 16” in width. (Rigid insulation is recommended with panels greater that 12” wide.) The panels can have thickness between 1” to 3”. (Rigid insulation is recommended for panels that are greater than 1 1/2” in thickness.) Our panels can be manufactured with up to a 1” reveal.

APF’s metal flush panels have been installed on many award-winning buildings including:

Austin City Hall – Copper flush panels
AMD Lone Star – Aluminum flush panels
Disch Falk Field – Aluminum flush panels
Includes a 20 year Finish Warranty and a 2 year Workmanship Warranty.
– Custom colors are available
– Engineering is available
(Call 866-671-7791 for info.)


We Also Build Commercial Roof Panels

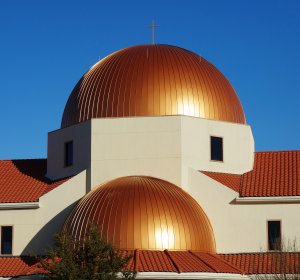

St.-Ann-DomeThe UL-90 rated standing seam panels are our premier commercial roofing panels and are the choice of Architects, Engineers and General Contractors all over Texas.

APF machines are UL-90 rated up to 22 gauge galvanized and 20 oz. copper as well as equivalent aluminum and zinc metals using the 2” leg structural panel design (APF 2000-1 Panel). Our panel widths range from 12” to 24” with leg heights of 1 1⁄2” (APF 1500-1 Panel) and 2” (APF 2000-1 Panel) and are available in three different panel profiles. Seamers are available for both 90 degrees (Single Lock) and 180 degrees (Double Lock) to handle slopes as low as 1⁄4:12. Panels come in either “flat bottom” or striation beads.

The 1 1⁄2” Standing Seam panel is recommended for slopes of 1:12 (4.9 degrees) or greater and may be applied with or without sealant and seamed 90 degrees or 180 degrees. Panel load tables and ASTM E0283 and E-331 air and water test results are available.

The 2” (APF 2000-1) Standing Seam panel is recommended for slopes of 1⁄2:12 (2.4 degrees) or greater and may be applied with or without sealant and seamed with single lock (90 degrees) or double lock (180 degrees). Air and water tests are available to meet ASTM. U.L. 90 rated: 18” wide panel with 90 degrees seam, 0.024 (24 gauge) Grade D steel over open purloins 48” O.C. UL construction number 298. U.L 90 rated: 16” wide panel with 90 degrees seam, 0.024 (24 gauge) Grade D steel over open purlins 60” O.C. UL construction number 482.
